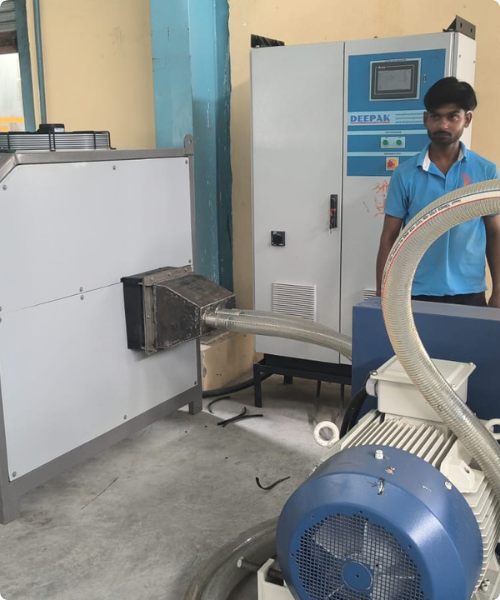

Air Chiller

Description
We are engaged in offering a wide range of air chiller & Chiller Unit that is widely appreciated for its high operational efficiency. Equipped with latest components, these are developed particularly for blown film, sugar, powder etc. where low temperature of air is required.

Chilling through technological excellence

Variable temperature range
Compact design covering minimum floor area.

Unmatched chilling, Exception Features
Breakthrough technology the ensures optimum performance long life and easy serviceability, plus precision engineering, contemporary design, selection of appropriate materials, upgraded manufacturing process, assembling and testing services to ensure perfect quality control and compact and uncluttered equipment design.

Low Cost Maintenance

Supreme quality that requires low maintenance.

Customer Care
To take care of all your maintenance requirements. Single source responsibility cover including designing, manufacturing, installation and servicing by experienced and competent engineers.

Technical Specification

Model	AC-13	AC-20	AC-26	AC-40	AC-48	AC-60	AC-72
No. of circuit	1	1	2	2	2	2	2
Chilled Air Quantity (CMH)	1300	2000	2600	4000	4800	6000	7200
Temperature Range	4°-20°C
Power supply	AC 50Hz, 415 V, 3PH
Compressor	Scroll/Screw/Semi Hermetic/Open Type
Cooling Coil	Dx-Type
Condenser	Air/Water Cooled

Water Cooled Air Chiller

Air Cooled Chiller

Description
We offer a wide range of Air Cooled Chillers that are unique and designed to handle any cooling problem. These chillers have improved efficiency and functionality by several latest & advanced technology. These chillers have best standard compressor and latest design fins & tube heat exchanger. Our Air Cooled Chillers have powerful cooling ability, low noise, low vibration, high efficiency and high reliability due to which they are highly appreciated by the clients. Moreover, our chillers are very cost-effective.

Technical Specification

Model	AAC-13	AAC-20	AAC-26	AAC-40	AAC-48	AAC-60	AAC-72
No. of circuit	1	1	2	2	2	2	2
Chilled Air Quantity (CMH)	1300	2000	2600	4000	4800	6000	7200
Temperature Range	4°-20°C
Power supply	AC 50Hz, 415 V, 3PH
Compressor	Scroll/Screw/Semi Hermetic/Open Type
Cooling Coil	Dx-Type
Condenser	Air Cooled

Due to continuous product development and improvement specification and technical details are subject to change without notice:

Capacities are based on 10°C of chilled Air.
For water cooled condenser, water inlet temp. should be 32°C Max.
For air cooled condenser, ambient temperature is 35°C
Higher capacity air chilling plants are also available on demand.

» Send Enquiry

Air Chiller

Air Cooled Chiller

Water Cooled Air Chiller

Description
We offer a comprehensive range of Water cooled Air Chillers. Water cooled Air-Chiller machines provide cool ambient air being mechanically circulated directly through the machine's condenser to expel heat to the atmosphere. They are used for outdoor /indoor installation and operation.

Our company made a complete line of water-cooled chillers with a variety of compressor types, to match both your application and budget. Our chillers constitute many features like high efficiency, high strength, smooth functioning, etc.

Technical Specification

Model	AWC-13	AWC-20	AWC-26	AWC-40	AWC-48	AWC-60	AWC-72
No. of circuit	1	1	2	2	2	2	2
Chilled Air Quantity (CMH)	1300	2000	2600	4000	4800	6000	7200
Temperature Range	4°-20°C
Power supply	AC 50Hz, 415 V, 3PH
Compressor	Scroll/Screw/Semi Hermetic/Open Type
Cooling Coil	Dx-Type
Condenser	Water Cooled

Due to continuous product development and improvement specification and technical details are subject to change without notice:

Capacities are based on 10°C of chilled Air.

For water cooled condenser, water inlet temp. should be 32°C Max.

For air cooled condenser, ambient temperature is 35°C

Higher capacity air chilling plants are also available on demand.
